Waterproofing inspection in Tallawong

The membrane looked at before a single tile covers it.

  • Membrane cured, tiler not yet started
  • About 1 hour on site
  • Report within 24 hours
Request a quoteSend your details and an inspector will ring you back.

No obligation. We use your details for your quote and may contact you about it even if you don't finish.

Fully licensed & accredited

Stage6 of 7
When to bookMembrane cured, tiler not yet started
Time on siteAbout 1 hour on site
Inspected againstAS 3740 (waterproofing of domestic wet areas), AS 3958 (tiling), NCC Volume Two Part 10.2

What is included in a Tallawong waterproofing inspection

  • Membrane coverage across the floor and up the walls
  • Wall upturn heights at the shower and against hobs
  • Hob, threshold and step-down details
  • Bond breakers at wall and floor junctions
  • Floor waste flange bedded and sealed to the membrane
  • Falls to the floor waste and shower screed
  • Penetrations for taps, wastes and shower rails sealed
  • Membrane cure, damage and coverage before tiling
  • Primer and substrate preparation where visible
  • Set-down depth against the finished floor level
  • Junctions to baths, screens and vanities
  • Laundry, powder room and ensuite treated to the same standard
Why it matters here

Waterproofing inspections on Tallawong builds

A typical Tallawong double storey has two or three bathrooms upstairs and often a balcony over a living room, so a failed membrane leaks onto a ceiling rather than a slab. The finding that started our November 2025 Tallawong investigation was water, and it traced back to things a waterproofing inspection would have caught: missing puddle flanges and paint over the membrane.

What we find at this stage in Tallawong

  • Bond breakers at internal corners
  • No pinholes or thin spots
  • Puddle flange bonded at every waste
  • Membrane height up walls and at the hob
  • Balcony drains and outlets in place

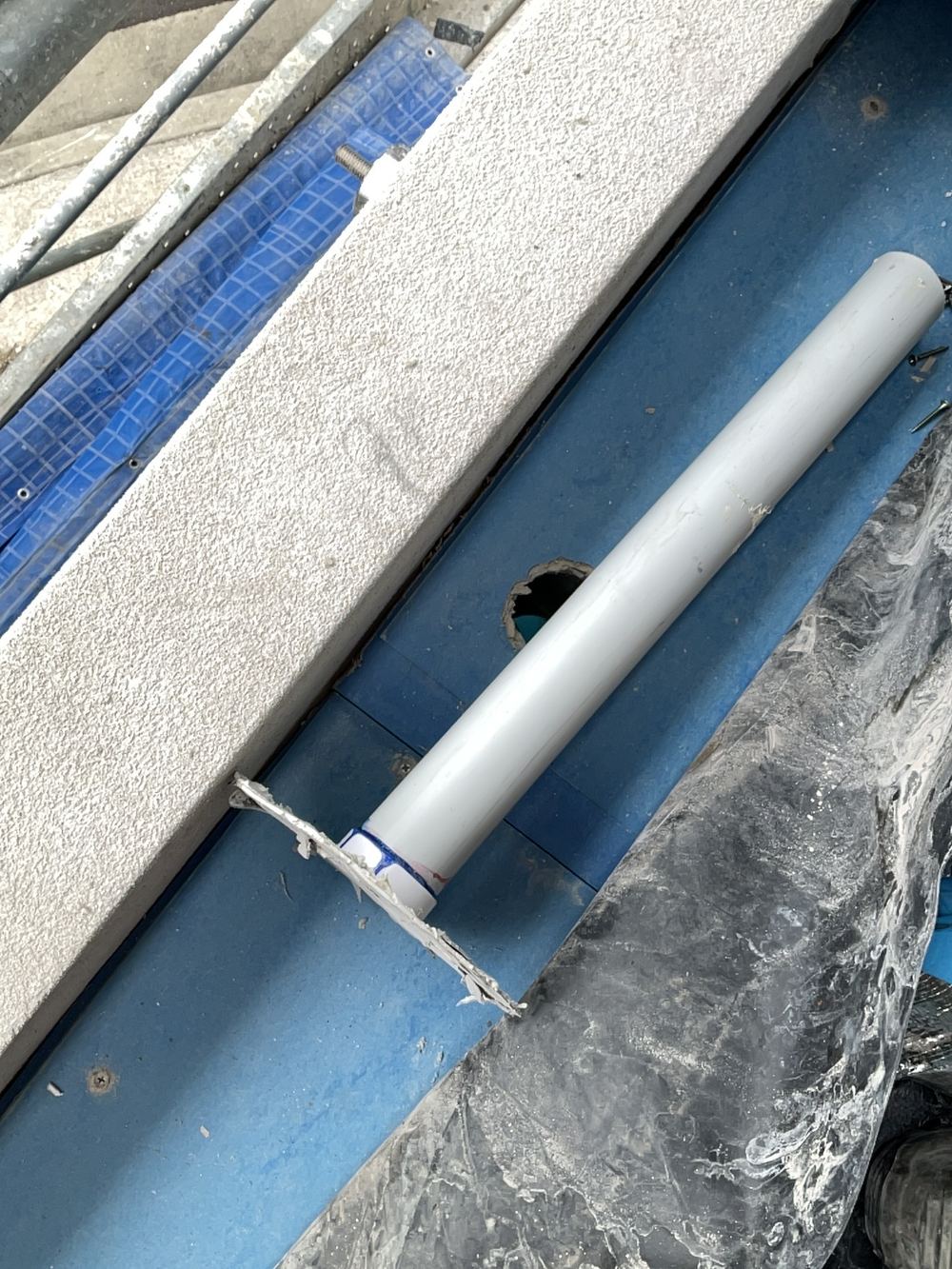

Balcony with no drainage installed or connected at membrane stage, found during a waterproofing inspection in Earlwood
Balcony with no drainage installed or connected at membrane stage, Earlwood
Membrane rolled on unevenly, with bulges across the ensuite shower floor, found during a fixing stage inspection in Kellyville
Membrane rolled on unevenly, with bulges across the ensuite shower floor, Kellyville
Sample findings

Sample defects found during our waterproofing inspections in Tallawong

Annotated findings from Waterproofing inspections.

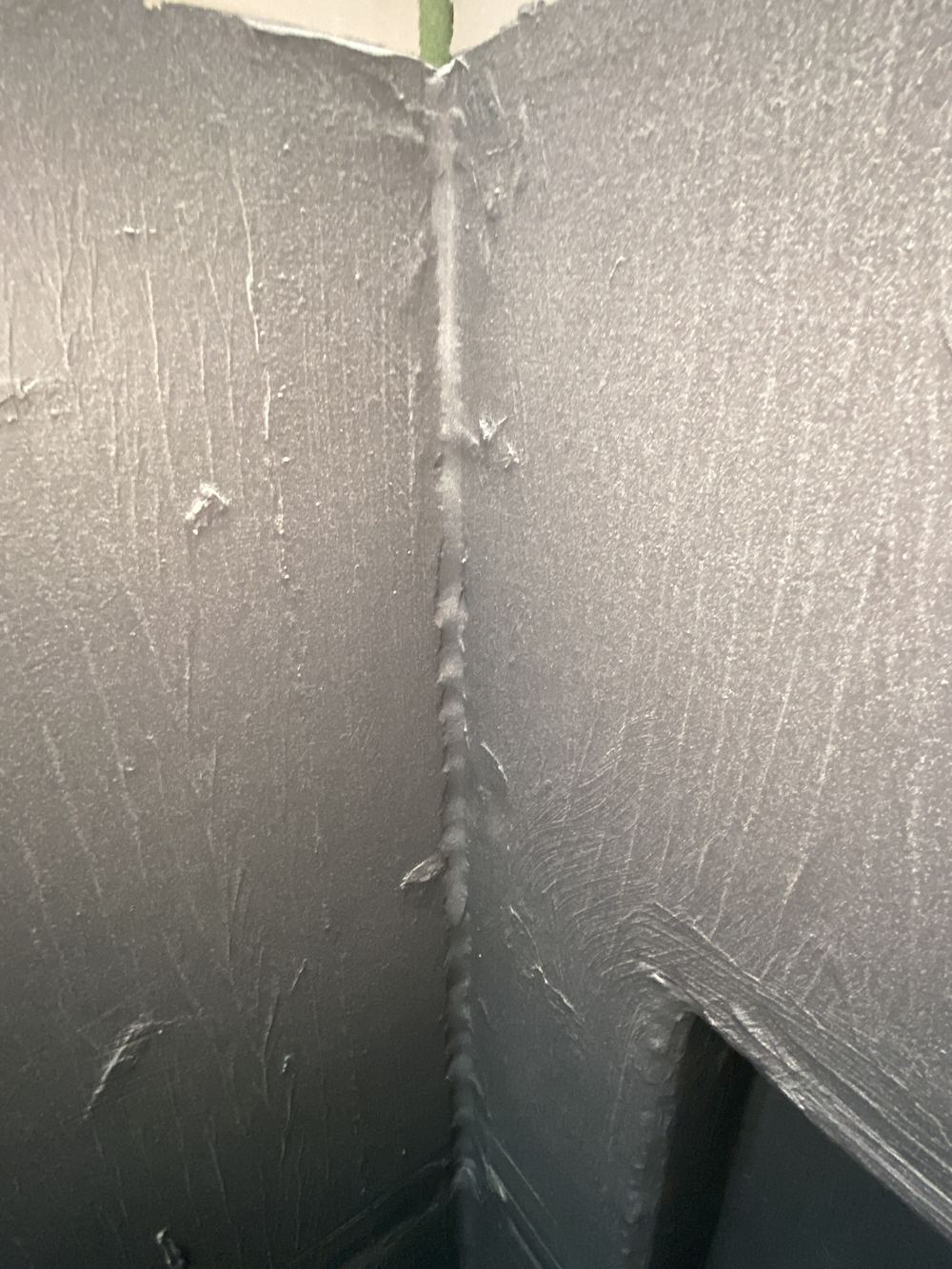

No bond breaker at a vertical shower corner under the membrane, found during a fixing stage inspection in Kellyville
No bond breaker at a vertical shower corner under the membrane, Kellyville

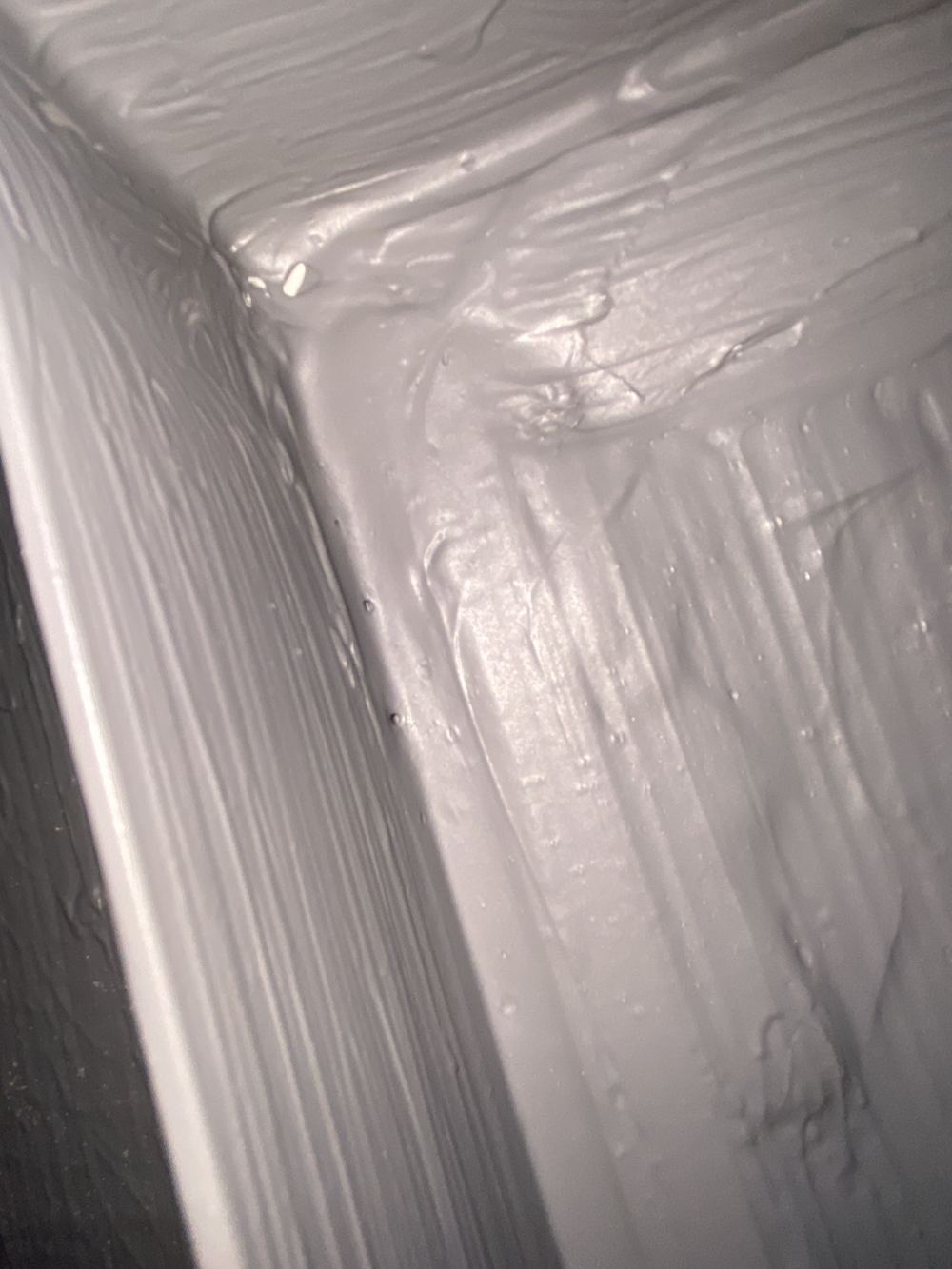

Pinholes through a shower membrane that must be sealed before tiling, found during a fixing stage inspection in Kellyville
Pinholes through a shower membrane that must be sealed before tiling, Kellyville

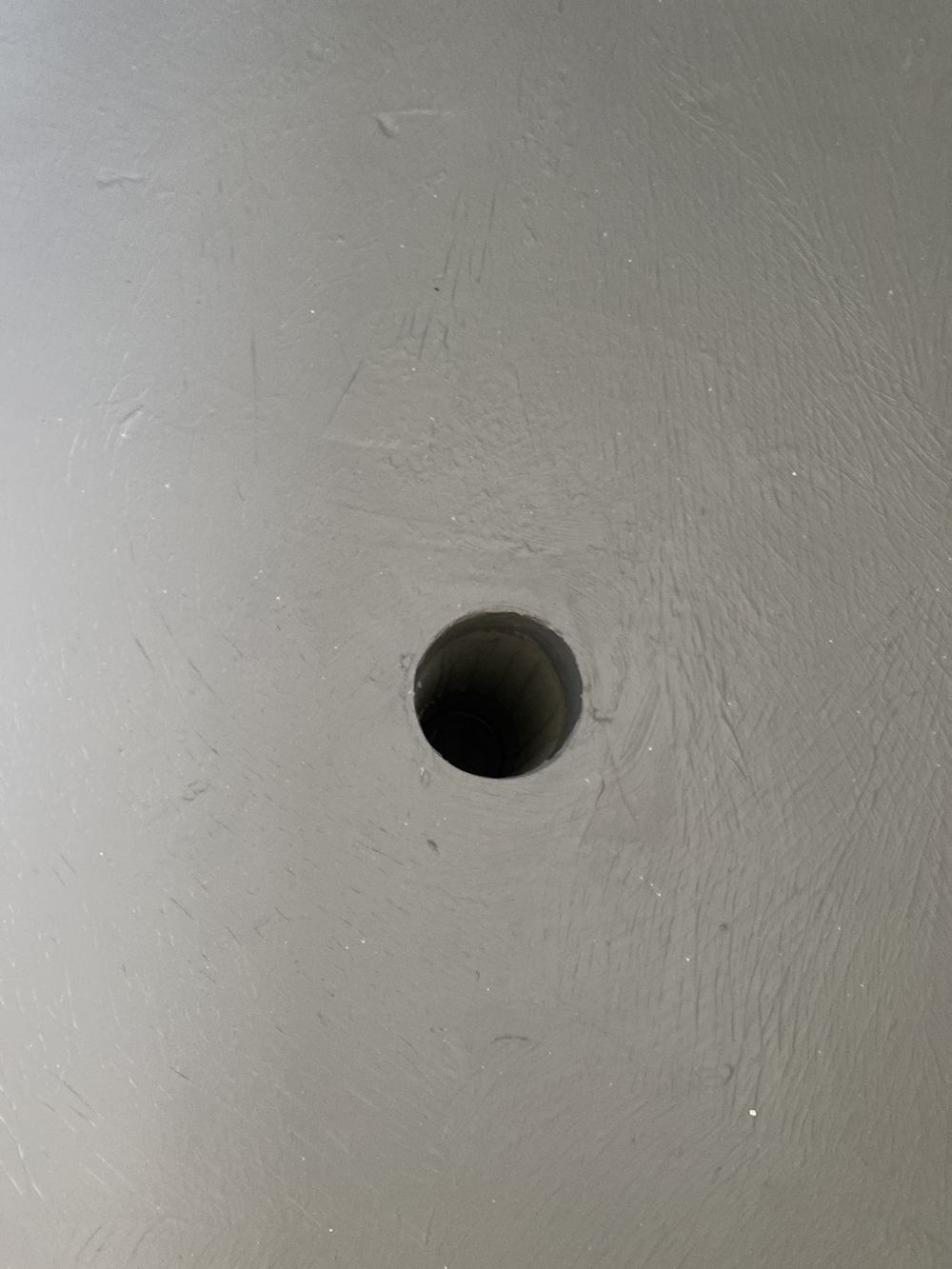

Floor waste fitted without a puddle flange bonded into the membrane, found during a waterproofing inspection in Blacktown
Floor waste fitted without a puddle flange bonded into the membrane, Blacktown

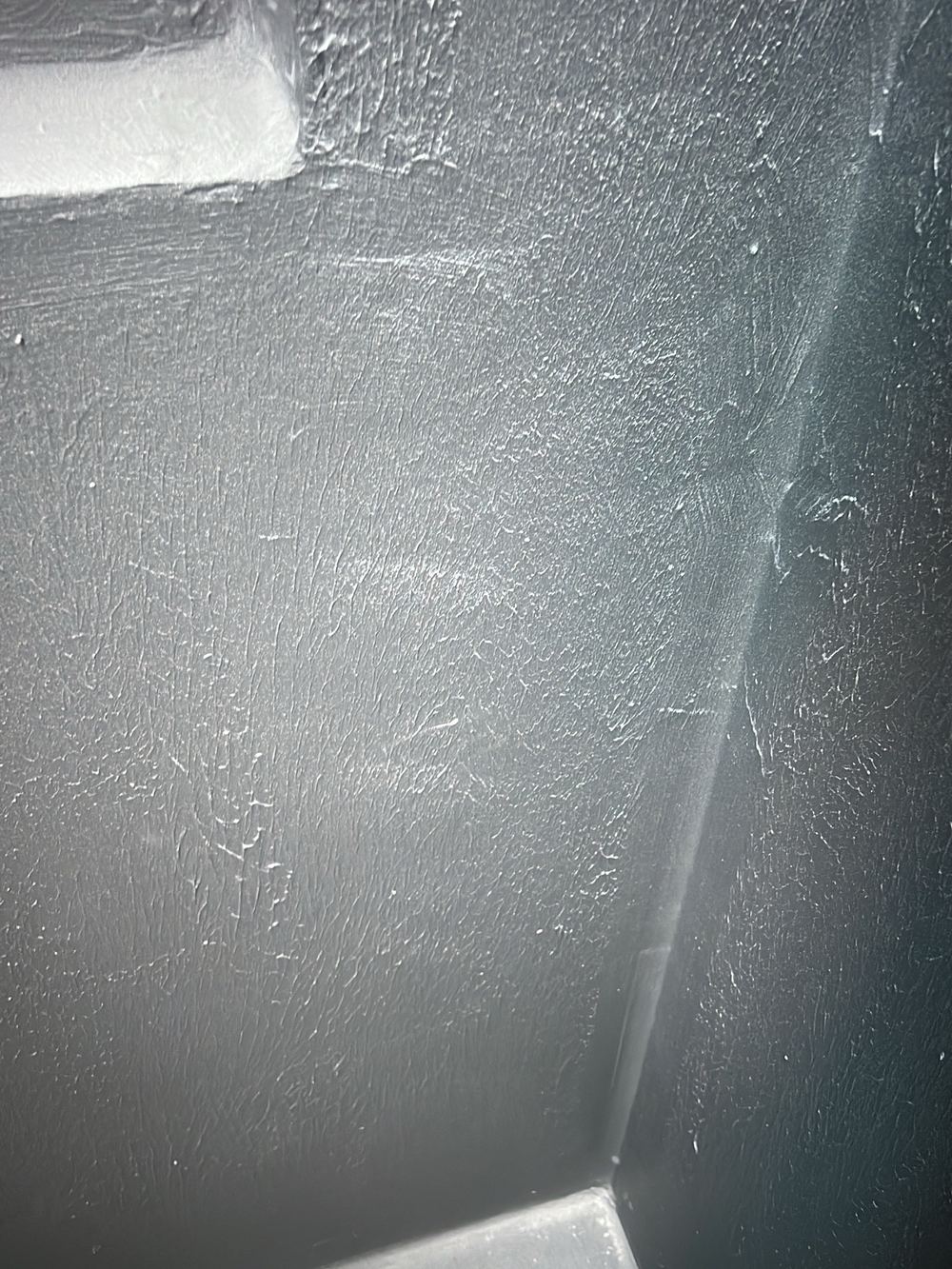

Damaged shower membrane that needed repair before any tile went down, found during a waterproofing inspection in Blacktown
Damaged shower membrane that needed repair before any tile went down, Blacktown

The other stages of a Tallawong build

  1. Bored piers inspection in Tallawong1Bored piersPiers drilled and cages in, concrete not yet ordered
  2. Slab pre-pour inspection in Tallawong2Slab pre-pourSteel, pods and membrane in place, the day before concrete
  3. Frame inspection in Tallawong3FrameFrame standing and roof on, before any wrap or lining
  4. Lock-up (pre-plaster) inspection in Tallawong4Lock-up (pre-plaster)Walls, roof and external doors done, plaster not yet hung
  5. Fixing inspection in Tallawong5FixingDoors, stairs and joinery fitted, painter booked next
  6. Pre-handover (PCI) inspection in Tallawong7Pre-handover (PCI)About two weeks ahead of the handover date

All construction stage inspections in Tallawong →

Guides

Construction stage guides for Tallawong

All guides →

Book a waterproofing inspection in Tallawong

Instant online pricing, or talk to the booking team on 1300 471 805.

FAQ

Waterproofing inspections in Tallawong: common questions

What is a bond breaker?

A strip or bead at a corner that lets the membrane flex without tearing as the walls and floor move. AS 3740 requires it at internal junctions.

Why are pinholes a problem?

Each one is a path for water through the membrane. They are sealed with another coat before tiling and impossible to find after.

What does a puddle flange do?

It connects the floor waste to the membrane so water that gets under the tiles still reaches the drain rather than the slab or the room below.

Do you inspect balconies at this stage?

Yes, where the membrane is on. We check the outlet, the overflow and the membrane turned up at the door.

How long does it take?

About an hour for a typical house with three wet areas.

What standards apply?

AS 3740 for internal wet areas, AS 4654.2 for balconies and external membranes, and the National Construction Code.
